Author Topic: Help With Wellenreiter Ii  (Read 7366 times)

VirtusRex

  • Full Member
  • ***
  • Posts: 126
    • View Profile
Help With Wellenreiter Ii
« on: April 26, 2006, 08:21:29 pm »
Hello everybody,

First off, I'd like to introduce myself, names VirtusRex and I am the proud owner of a new Sharp Zaurus 760. My frist PDA was a Dell axim x5, then a x50v, and now it's 760 zaurus, which by the way is an amazing pda!

Ok on to business. I recently install Wellenreiter II, but can't seem to find any networks when I scan.

As mention before my unit is a Zaurus 760 running Pdaxrom with a symbol LA4137 wireless card.
Within Wellenreiter, under the configure dialog box I have the following settings:

Name: eth0
Driver: orinoco

Is this the righ setup? Has anybody else got Wellenreiter II working with a Symbol LA-4137 wireless card?


Logged

bluedevils

  • Hero Member
  • *****
  • Posts: 1284
    • View Profile
    • http://
Help With Wellenreiter Ii
« Reply #1 on: April 27, 2006, 02:12:42 am »
what revision is the symbol card?  Look on the back.  It will be a letter.  Mine is a socket rev K.
Logged
I'm now an iphone user and use my zaurii as serial terminals, perl and shell scripting and when I need 640x480 screens

sl-c3100/pda cacko 1.23 | sl-6000l/needs battery | sl-c760/server pdaxrom rc12 | Former sl-5500/tkcrom owner (sister's birthday gift)

Mickeyl

  • Hero Member
  • *****
  • Posts: 1495
    • View Profile
    • http://www.Vanille.de
Help With Wellenreiter Ii
« Reply #2 on: April 27, 2006, 08:58:34 am »
Does that card work for normal connections?
Logged
Cheers,

Michael 'Mickey' Lauer | Embedded Linux Freelancer | www.Vanille-Media.de
Consider donating, if you like the software I contribute to.

scheck.r

  • Sr. Member
  • ****
  • Posts: 320
    • View Profile
    • http://
Help With Wellenreiter Ii
« Reply #3 on: April 27, 2006, 10:13:52 am »
Quoted from Jerrybme from https://www.oesf.org/forums/index.php?showt...8057&hl=orinoco

OK, I found that simply copying the orinoco modules from Chris Bryden fixes the problem.

Simply
Code: [Select]
# cd /
# tar xzvf /location-of-file/orinoco-modules.tar.gz
Then pop in your card and away you go.

Code: [Select]
To get the card to go into monitor mode for kismet, you'll need to
# iwconfig eth0 mode monitor
It's the same for Wellenreiter.
I had the same problem but after these changes it's works over here on C-1000 with symbol LA4137 wireless card
Logged
SL-C1000 from PriceJapan(cheap and very fast shipping) with EA-70 power adapter, iRiver USB Host cable, PDAIR case, pentopia stylus, ultra clear screen-protector from shop.brando.com.hk only $3 for shipping worldwide
4GB Hitachi Microdrive, 1GB Kingston Elite Pro CF, 4GB Transcend 150x SD, Symbol Spectrum 4137 CF WiFi(low power)
PdaXrom pdaxii13 5.4.9 updated with Kkazakov13's feed. I owned a SL-6000L before

VirtusRex

  • Full Member
  • ***
  • Posts: 126
    • View Profile
Help With Wellenreiter Ii
« Reply #4 on: April 27, 2006, 12:34:31 pm »
Quote
Quoted from Jerrybme from https://www.oesf.org/forums/index.php?showt...8057&hl=orinoco

OK, I found that simply copying the orinoco modules from Chris Bryden fixes the problem.

Simply
Code: [Select]
# cd /
# tar xzvf /location-of-file/orinoco-modules.tar.gz
Then pop in your card and away you go.

Code: [Select]
To get the card to go into monitor mode for kismet, you'll need to
# iwconfig eth0 mode monitor
It's the same for Wellenreiter.
I had the same problem but after these changes it's works over here on C-1000 with symbol LA4137 wireless card
[div align=\"right\"][a href=\"index.php?act=findpost&pid=124796\"][{POST_SNAPBACK}][/a][/div]


Ok, I download the orinoco-modeles.tar.gz from Chris Bryden web site and run the code exactly.

The orinoco-modeles.tar.gz uncompressed no problem, but when I ran 'iwconfig eth0 mode monitor' I got the following error:

Error for wireless request "Set mode" (8B06) :
SET failed on device eth0: Invalid argument.


I have no problem running Kismet, just can't run Wellenreiter.
[ Invalid Attachment ]

Thanks for the fast reply guys, much appreciated.

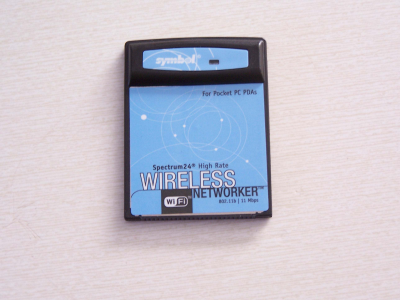

I've also attached some pics of my Symbol card. I can't seem to find where the Rev number is located?
Logged

bluedevils

  • Hero Member
  • *****
  • Posts: 1284
    • View Profile
    • http://
Help With Wellenreiter Ii
« Reply #5 on: April 27, 2006, 12:43:28 pm »
my mistake. I was thinking bluetooth.

is there a commandline equivelant to cardctl ident?

it does look like my rev a card.  I think the newer socket/symbols are more squarish.
« Last Edit: April 27, 2006, 12:51:45 pm by bluedevils »
Logged
I'm now an iphone user and use my zaurii as serial terminals, perl and shell scripting and when I need 640x480 screens

sl-c3100/pda cacko 1.23 | sl-6000l/needs battery | sl-c760/server pdaxrom rc12 | Former sl-5500/tkcrom owner (sister's birthday gift)

VirtusRex

  • Full Member
  • ***
  • Posts: 126
    • View Profile
Help With Wellenreiter Ii
« Reply #6 on: April 27, 2006, 12:51:40 pm »
One more thing, I'm running rom version 1.1.0beta1, and I noticed that 1.1.0beta2 has some Symbol fixes in the change log:

Changelog SL-C7x0
fixed unresolved symbol in hostap module
kernel updated to 2.4.20
new MMC/SD driver
kernel updated with cacko patches

Should I switch from 1.1.0beta1 to 1.1.0beta2?
Logged

scheck.r

  • Sr. Member
  • ****
  • Posts: 320
    • View Profile
    • http://
Help With Wellenreiter Ii
« Reply #7 on: April 27, 2006, 07:28:05 pm »
Quote
One more thing, I'm running rom version 1.1.0beta1, and I noticed that 1.1.0beta2 has some Symbol fixes in the change log:

Changelog SL-C7x0
fixed unresolved symbol in hostap module
kernel updated to 2.4.20
new MMC/SD driver
kernel updated with cacko patches

Should I switch from 1.1.0beta1 to 1.1.0beta2?
[div align=\"right\"][a href=\"index.php?act=findpost&pid=124812\"][{POST_SNAPBACK}][/a][/div]
Not sure if you must flash with beta2, I can just tell you that I am running beta2 on C1000 and the method I gave you works. Moreover the link I provided is about beta2, so I think it's a good thing to do, you could even flash to beta3 right away.
Logged
SL-C1000 from PriceJapan(cheap and very fast shipping) with EA-70 power adapter, iRiver USB Host cable, PDAIR case, pentopia stylus, ultra clear screen-protector from shop.brando.com.hk only $3 for shipping worldwide
4GB Hitachi Microdrive, 1GB Kingston Elite Pro CF, 4GB Transcend 150x SD, Symbol Spectrum 4137 CF WiFi(low power)
PdaXrom pdaxii13 5.4.9 updated with Kkazakov13's feed. I owned a SL-6000L before

VirtusRex

  • Full Member
  • ***
  • Posts: 126
    • View Profile
Help With Wellenreiter Ii
« Reply #8 on: April 27, 2006, 07:36:59 pm »
Quote
Quote
One more thing, I'm running rom version 1.1.0beta1, and I noticed that 1.1.0beta2 has some Symbol fixes in the change log:

Changelog SL-C7x0
fixed unresolved symbol in hostap module
kernel updated to 2.4.20
new MMC/SD driver
kernel updated with cacko patches

Should I switch from 1.1.0beta1 to 1.1.0beta2?
[div align=\"right\"][a href=\"index.php?act=findpost&pid=124812\"][{POST_SNAPBACK}][/a][/div]
Not sure if you must flash with beta2, I can just tell you that I am running beta2 on C1000 and the method I gave you works. Moreover the link I provided is about beta2, so I think it's a good thing to do, you could even flash to beta3 right away.
[div align=\"right\"][a href=\"index.php?act=findpost&pid=124865\"][{POST_SNAPBACK}][/a][/div]

Sounds like a plan, where is the download link for beta3 package???
Logged

jerrybme

  • Hero Member
  • *****
  • Posts: 639
    • View Profile
    • http://
Help With Wellenreiter Ii
« Reply #9 on: April 27, 2006, 11:50:47 pm »
Definately you should update to Beta 2 or 3. To get Beta 1 to work with my Symbol, I had to compile a custom kernel without the orinoco drivers and then install Chris' orinoco drivers. No need for custom kernel with Beta2 & 3

Beta 3 for C760:
http://mail.pdaxrom.org/contrib/1.1.0beta3/Zaurus-7x0-860/

Good luck,
Jerry
« Last Edit: April 27, 2006, 11:53:05 pm by jerrybme »
Logged
SL-C3100
Angstrom-GPE
Lexar SD 1 GB
PQI 2GB CF
Ambicom WL1100 CF

VirtusRex

  • Full Member
  • ***
  • Posts: 126
    • View Profile
Help With Wellenreiter Ii
« Reply #10 on: April 28, 2006, 09:27:16 am »
Quote
Definately you should update to Beta 2 or 3. To get Beta 1 to work with my Symbol, I had to compile a custom kernel without the orinoco drivers and then install Chris' orinoco drivers. No need for custom kernel with Beta2 & 3

Beta 3 for C760:
http://mail.pdaxrom.org/contrib/1.1.0beta3/Zaurus-7x0-860/

Good luck,
Jerry
[div align=\"right\"][a href=\"index.php?act=findpost&pid=124890\"][{POST_SNAPBACK}][/a][/div]

Thanks jerrybme,

I was able to download the initrd.bin and tools.tar files, but the updater.sh file gives me this message when I try to download it:

Forbidden

You don't have permission to access /contrib/1.1.0beta3/Zaurus-7x0-860/updater.sh on this server.

Any ideas??

Thanks again.
Logged

jerrybme

  • Hero Member
  • *****
  • Posts: 639
    • View Profile
    • http://
Help With Wellenreiter Ii
« Reply #11 on: April 28, 2006, 01:49:56 pm »
Quote
I was able to download the initrd.bin and tools.tar files, but the updater.sh file gives me this message when I try to download it:

Forbidden

You don't have permission to access /contrib/1.1.0beta3/Zaurus-7x0-860/updater.sh on this server.

Any ideas??

Thanks again.
[div align=\"right\"][a href=\"index.php?act=findpost&pid=124967\"][{POST_SNAPBACK}][/a][/div]

Yes, this is not a problem, just use the updater from beta1, it hasn't changed.
Cheers,
Jerry
Logged
SL-C3100
Angstrom-GPE
Lexar SD 1 GB
PQI 2GB CF
Ambicom WL1100 CF

VirtusRex

  • Full Member
  • ***
  • Posts: 126
    • View Profile
Help With Wellenreiter Ii
« Reply #12 on: April 28, 2006, 10:33:01 pm »
Quote
Quote
I was able to download the initrd.bin and tools.tar files, but the updater.sh file gives me this message when I try to download it:

Forbidden

You don't have permission to access /contrib/1.1.0beta3/Zaurus-7x0-860/updater.sh on this server.

Any ideas??

Thanks again.
[div align=\"right\"][a href=\"index.php?act=findpost&pid=124967\"][{POST_SNAPBACK}][/a][/div]

Yes, this is not a problem, just use the updater from beta1, it hasn't changed.
Cheers,
Jerry
[div align=\"right\"][a href=\"index.php?act=findpost&pid=124979\"][{POST_SNAPBACK}][/a][/div]


Ok, did what you said and Wellenreiter works great.

Thanks man, I owe you one.

Virtusrex
Logged
